Carton sealer

EC-705

EC-705

Auto uniform flap folding
DETAIL
Features

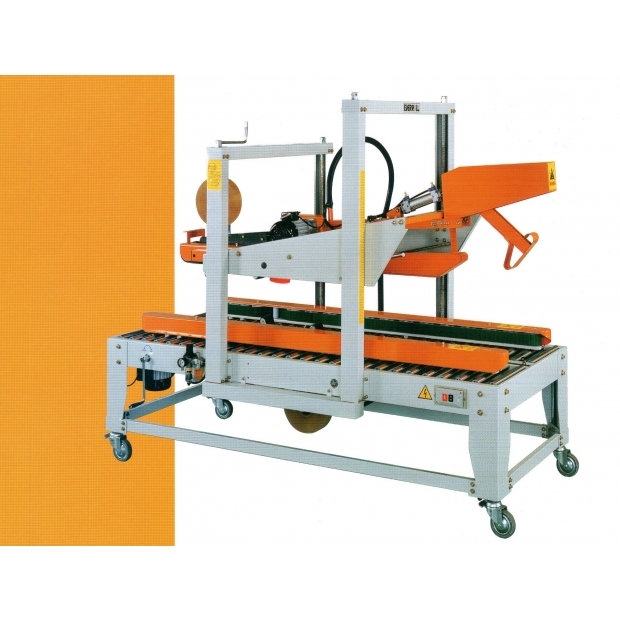

Auto uniform flap folding & Carton sealer
Model:EC-705
Auto top flap folding
Manual adjustment for carton size
Top & bottom side belts driven
Three motors driven
Suitable for uniform carton sizes in batches

Specification
Carton size range:
(L):150-650mm
(W):110-550mm
(H):100-500mm
OPP tape:2" ( 3" optional)
Machine dimension:(L)2030mm×(W)930mm×(H)1670mm
Table height:570-750mm

**Above specification for referecne only, it depends on actual production.
**For other carton size range can produce case by case. Please contact us for more information.

Video




EC-705+EC-706
Flap Folding & Carton Sealer + Carton Edge Sealer
Flap Folding & Carton Sealer + Carton Edge Sealer
